Description
CanadianSolar

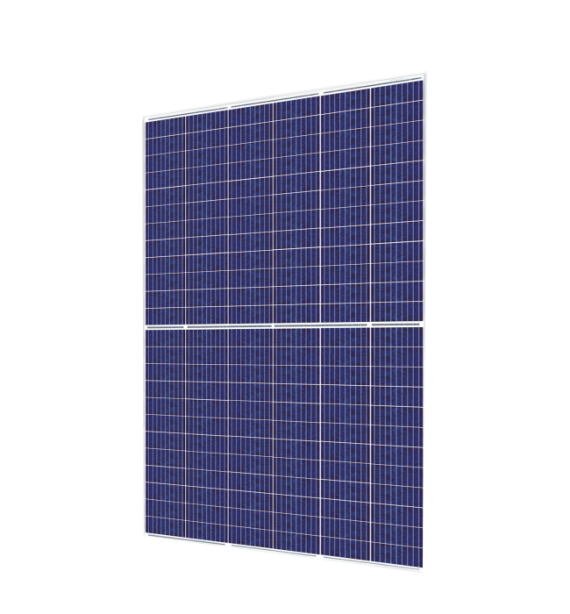

HIKU PERC Module
CS3L-340 watts
With Canadian Solar’s proprietary poly wafer and cell technologies we have developed an extraordinary module. HiKu is the first poly module exceeding 400 W and thus reaches one of the highest poly module power outputs in the solar industry. Combining the best technology and design, it also reduces LCOE and installation costs.
For product inquires, please contact us at HiKu@canadiansolar.com
PRODUCT FEATURES
-
- 24 % more power than conventional modules
Up to 4.5 % lower LCOE- Up to 2.7 % lower system cost
- Low NMOT: 42 ± 3 °C
- Better shading tolerance
- Lower internal current,
- lower hot spot temperature
- Cell crack risk limited in small region,
- Enhance the module reliability
- Heavy snow load up to 5400 Pa
- Wind load up to 3600 Pa
Mechanical data
-
- Dimensions (LxHxW): 1765 x 1048 x 40 mm (69.5 x 41.3 x 1.57 in)
- Cell Arrangement : 120 [2 X (10 X 6) ]
- Front Cover 3.2 mm tempered glass
- Frame Anodized aluminium alloy
- Cable 4.0 mm² (IEC), 12 AWG (UL)
- Weight: 20.6 kg (45.4lbs
Electrical data
- Nominal Max. Power (Pmax) : 340 W
- Operating Voltage (Vmp) : 32.6 V
- Operating Current (Imp) : 10.43 A
- Open Circuit Voltage (VoC) : 39.6 V
- Short Circuit Current (Isc) : 10.98 A
- Module Efficiency : 18.38 %
- Maximum Series Fuse Rating : 20 A
