Description
Company Profile
- Sunworth solar, we commit ourselves to R&D, manufacture and technical innovation on PV modules and solar power system.
- To provide high quality products with various specifications for customers is always our pursuit.
Characteristics
- Use high quality solar cells to advanced encapsulation
- Adopt high transparent low-iron tempered glass, high quality anti-UV EVA and back sheet.
- With multi-ply performance testing for each module, to ensure the product quality and output performance.
- Using anodization aluminum frame with anticorrosion, to ensure solar module working under extremely and badly outdoors environment
Warranty
- 20 years power output warranty, 90% power output for 5years, and 80% power output for 20years.
- 3 years workmanship warranty.
Quality and safety
- ISO9001:2008 certified supplier, we provide world first class solar products for clients.
- IEC 61215, IEC 61730, IEC, CQC, CGC, CE, approved.

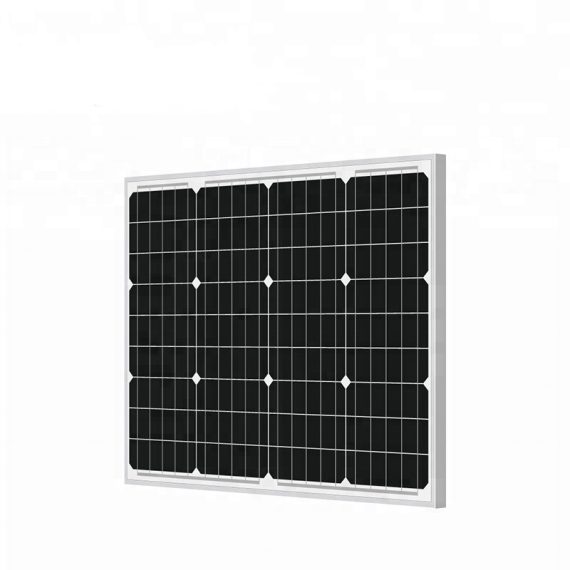

SW050M
50w
monocrystalline
Electrical Characteristics
Maximum Power (Pmax) 50W
Max-power Voltage (Vmp) 18.6V
Max-power Current (Imp) 2.69A
Open-circuit Voltage (Voc) 22.5V
Short-circuit Current (Isc) 2.92A
Module Efficiency 14.3%
Operating Temperature -40℃~+85℃
Maximum System Voltage 600Vdc
Maximum Series Fuse Rating 10A
Power tolerance ±3%
